In a joint effort with Mark Trostle and his incredibly talented SRT Design team, a very special

Ukulele was designed for the So Cal Viper Club Holiday Party auction.  Here is a start to finish

pictorial of this one of a kind tenor ukulele.

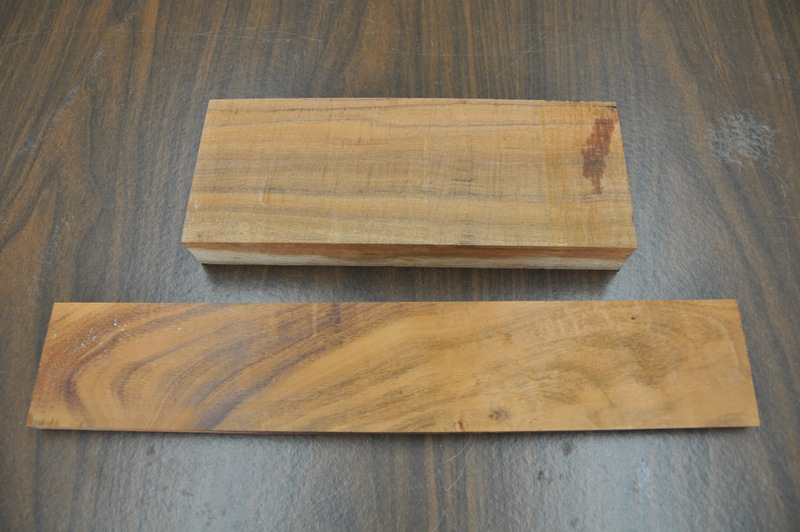

Koa blocks

Koa sides

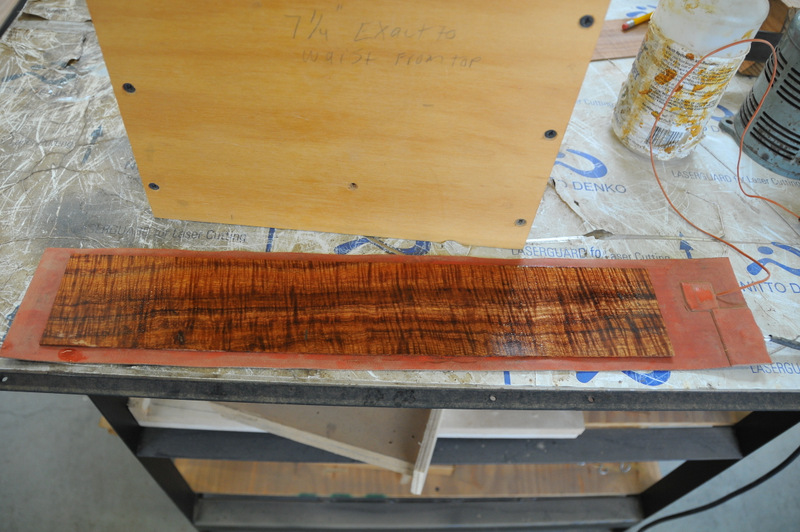

One half of the uke side on the heating blanket

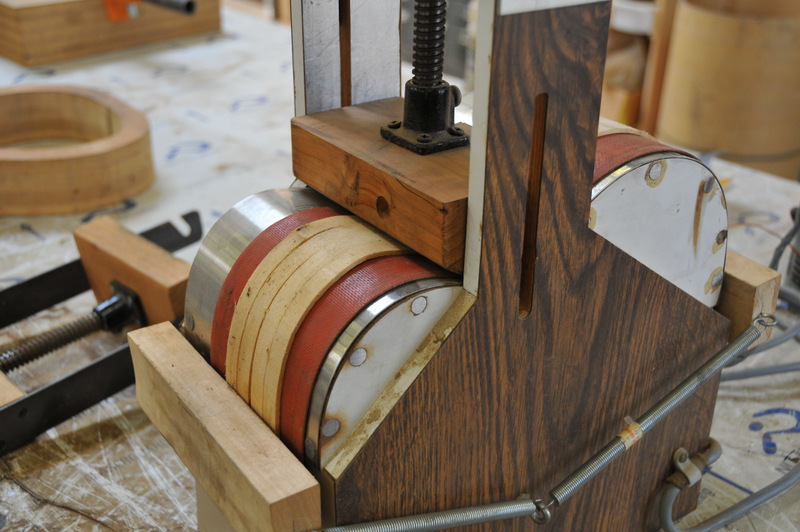

The side in the bending jig

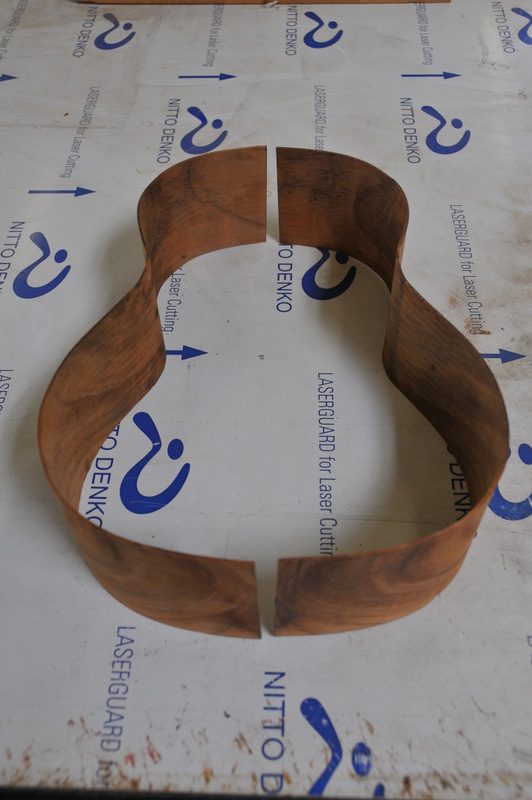

The two halves

Connecting the two halves with the blocks

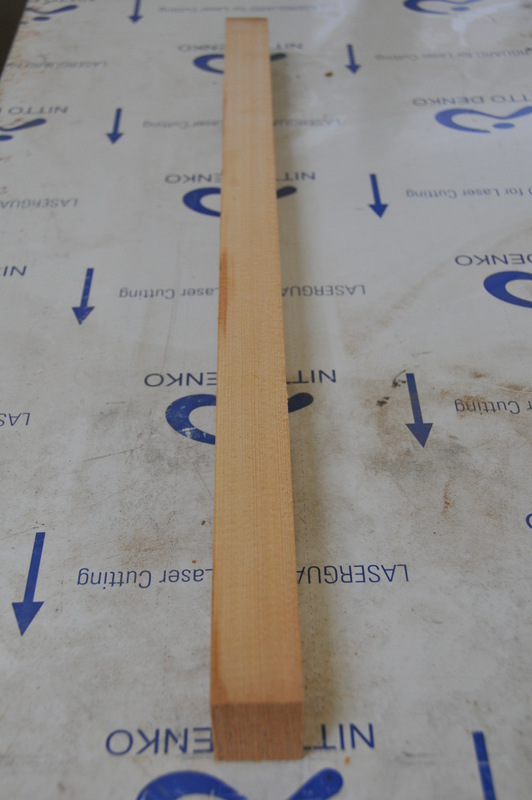

Spruce block

Veneered down

and then sized down to the proper lining dimensions

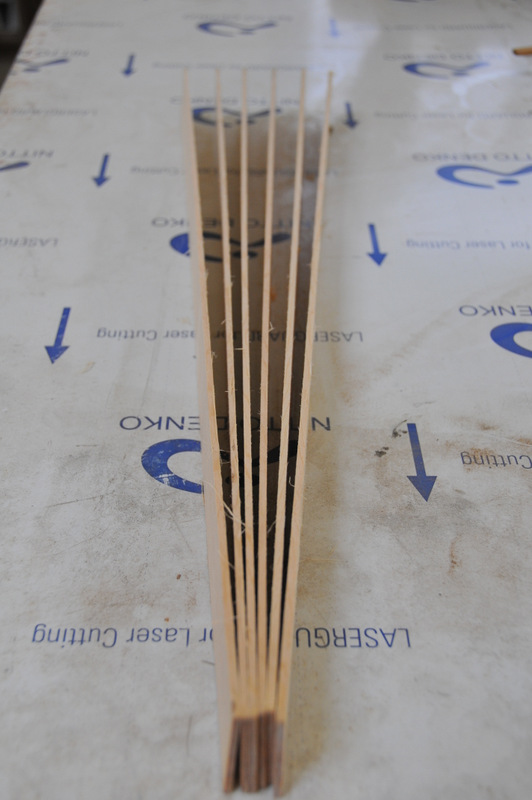

Bending the spruce lining

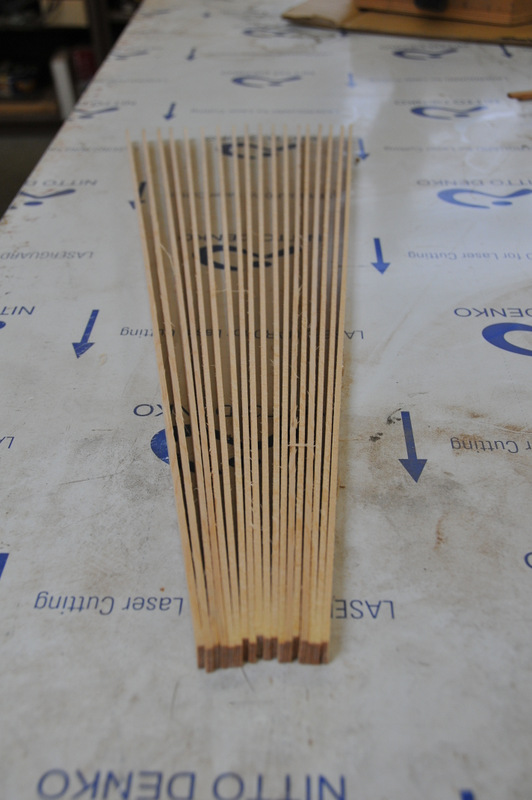

Lining bent and ready to get glued into the body

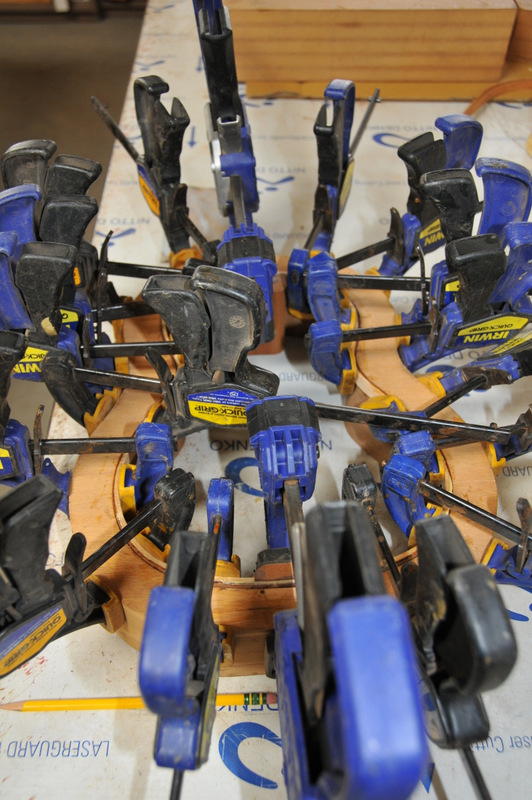

Lining clamped into the body

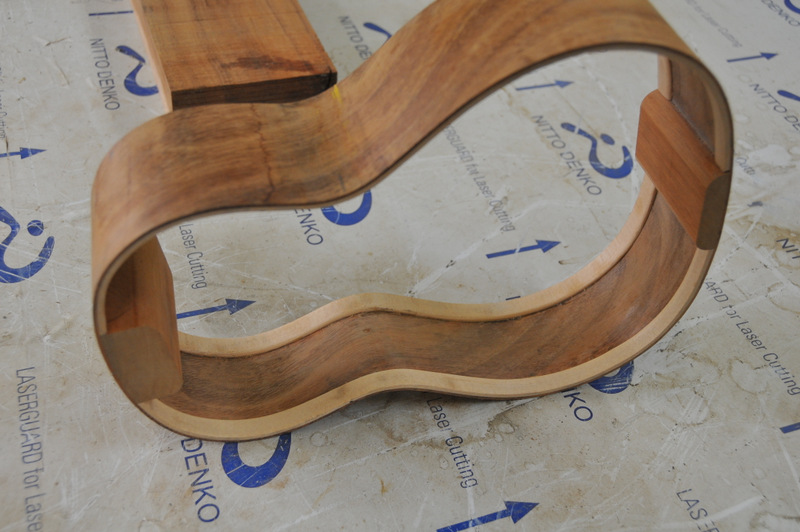

The body with the lining all glued in

Face and back block

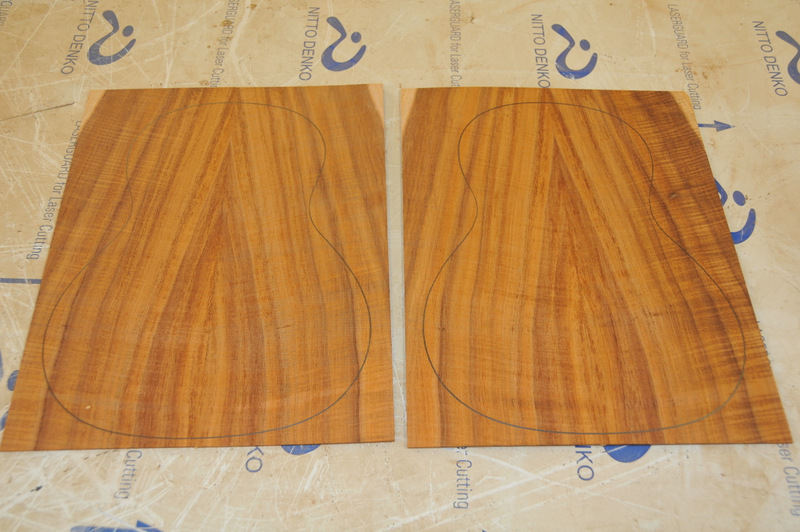

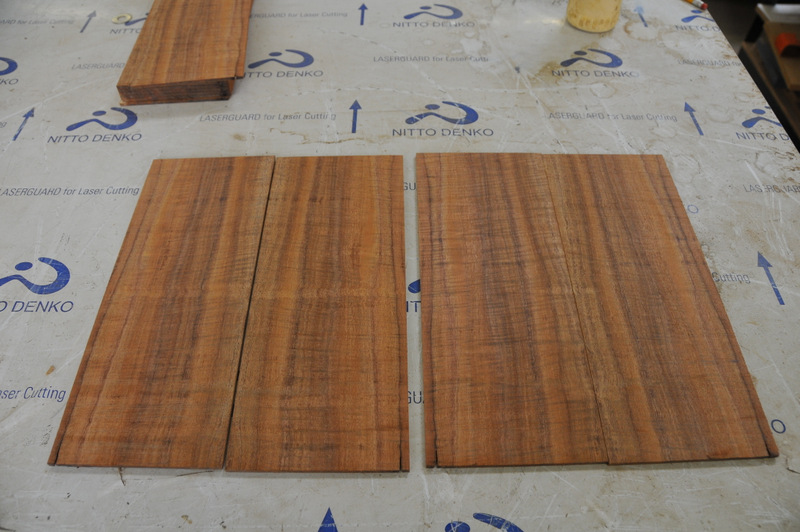

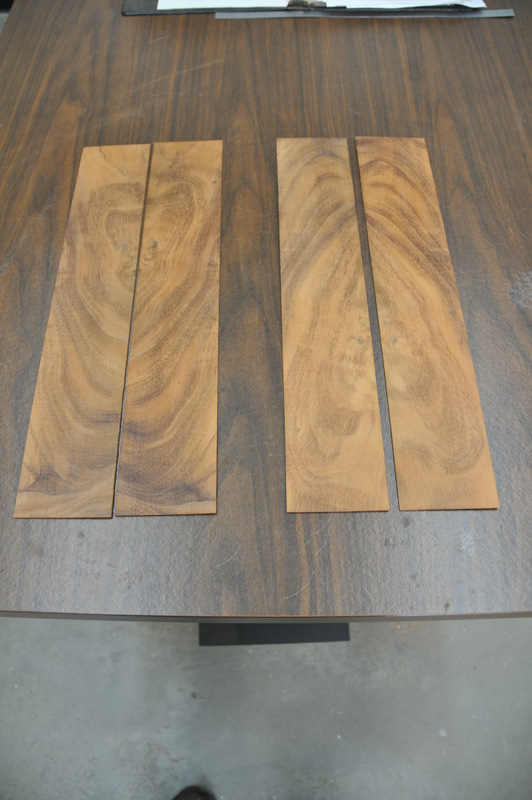

Veneered down to size and perfectly book matched

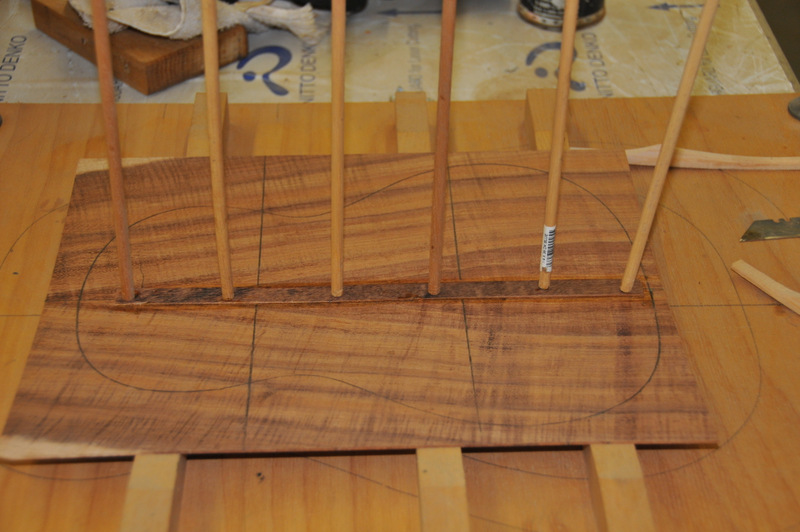

Gluing the halves together

The face and back ready for the SRT design.

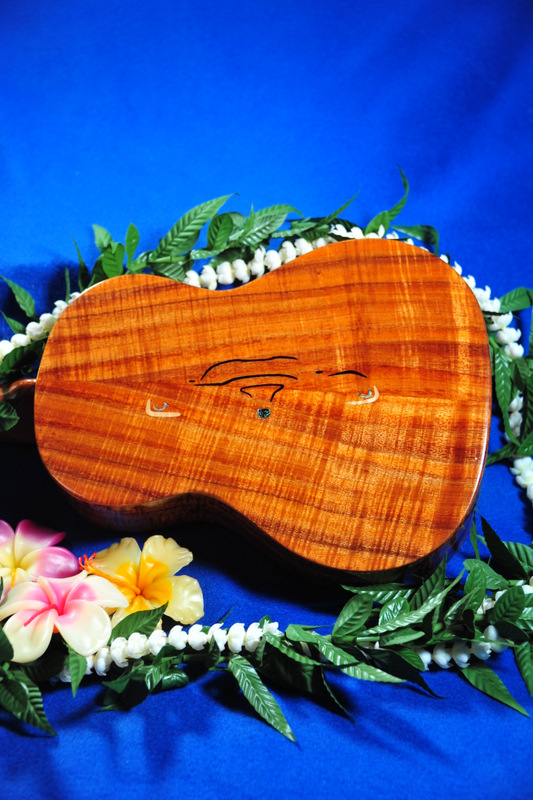

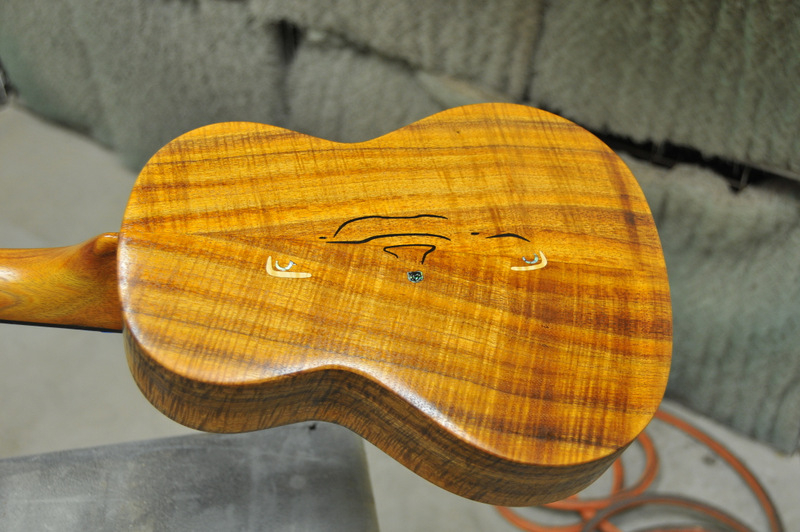

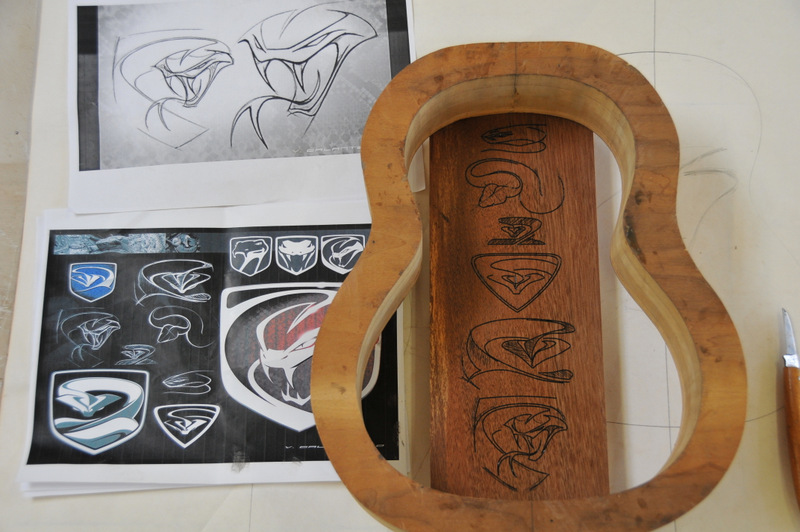

SRT provided me with various ideas and sketches.  One idea was to engrave the sketches down the back

After much thought, I decided to take one of the sketches

and work it into the face design

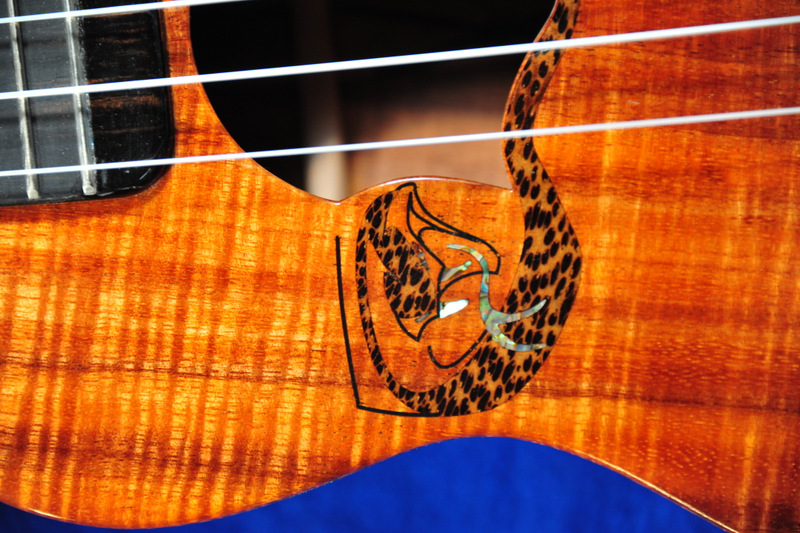

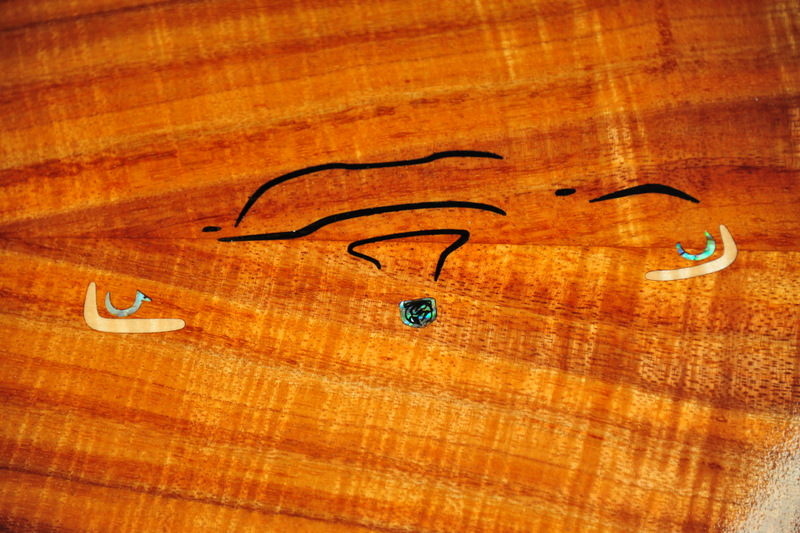

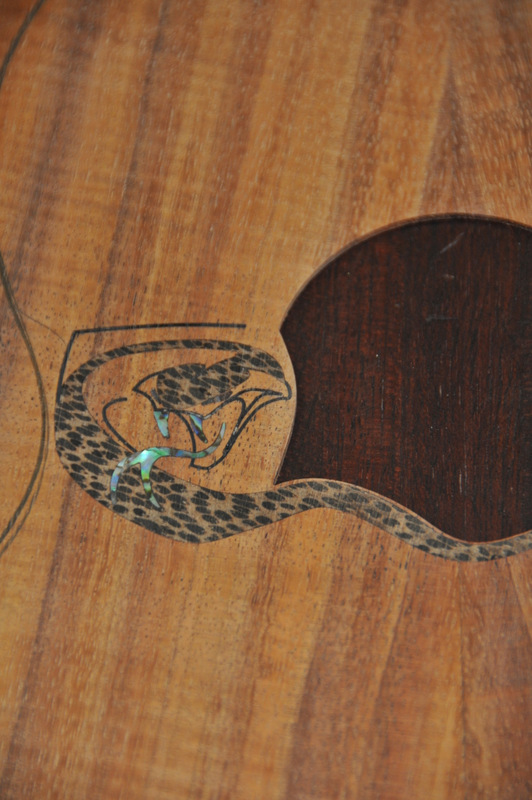

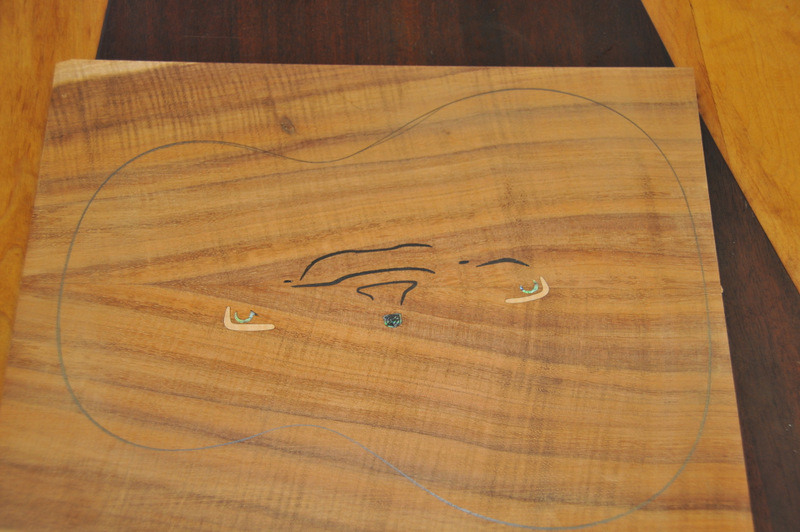

Using black palm and abalone shell to re-create the SRT sketch

This drawing had become a bit of an icon for the new Viper and was drawn by the SRT team

I got their blessing to use the design on the uke.

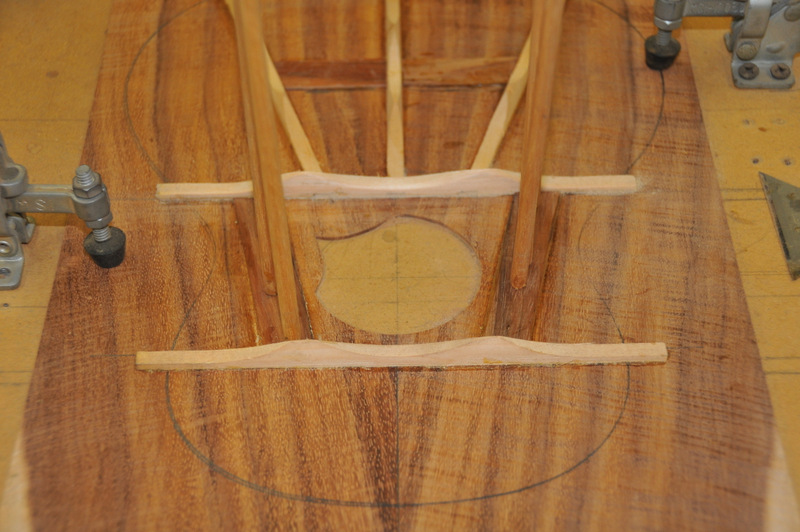

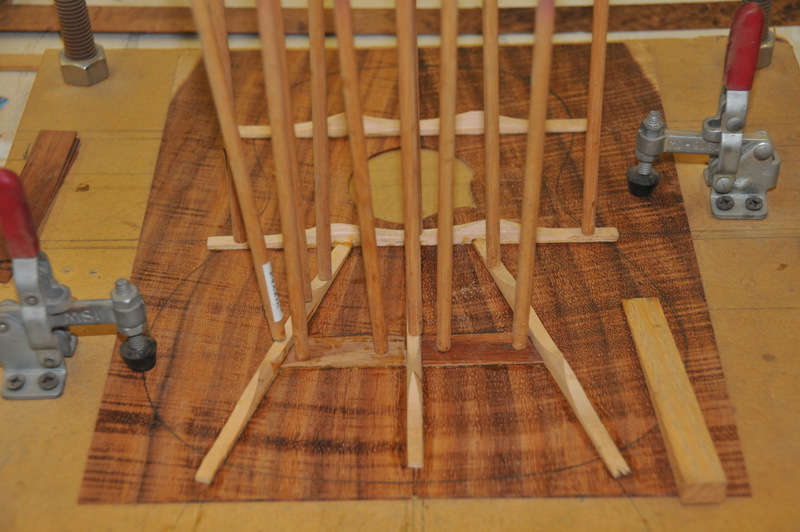

With the inlays complete, it was time to put the structural bracing in

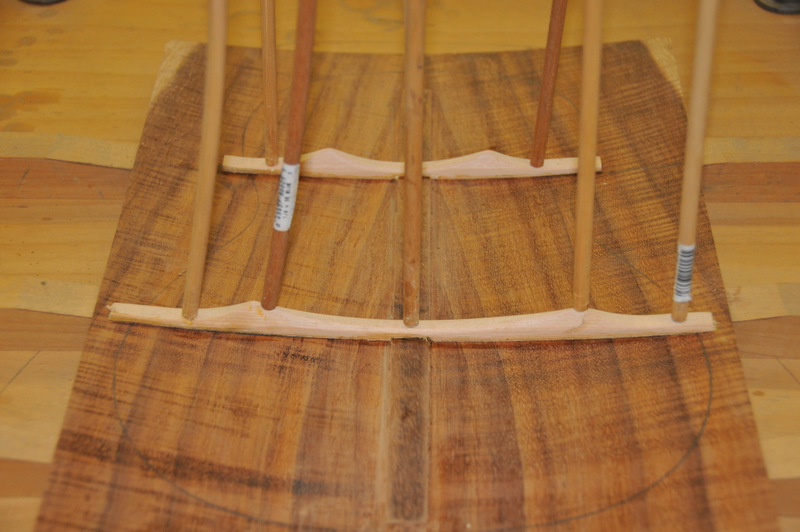

The back

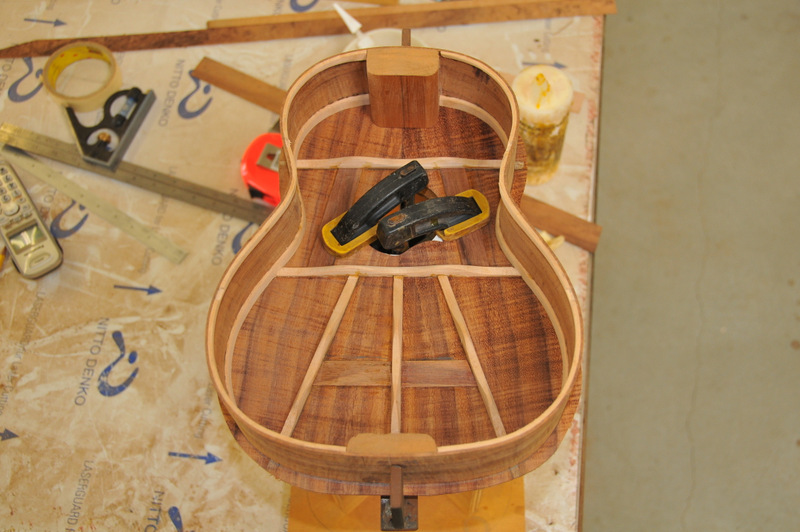

Once the bracing was glue in, it was time to put the body together

Back and face glued to the body

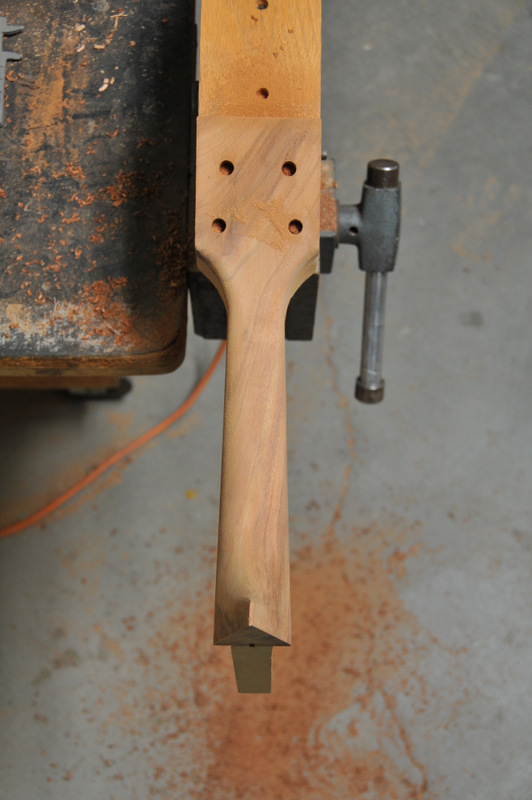

Shaping the neck by hand

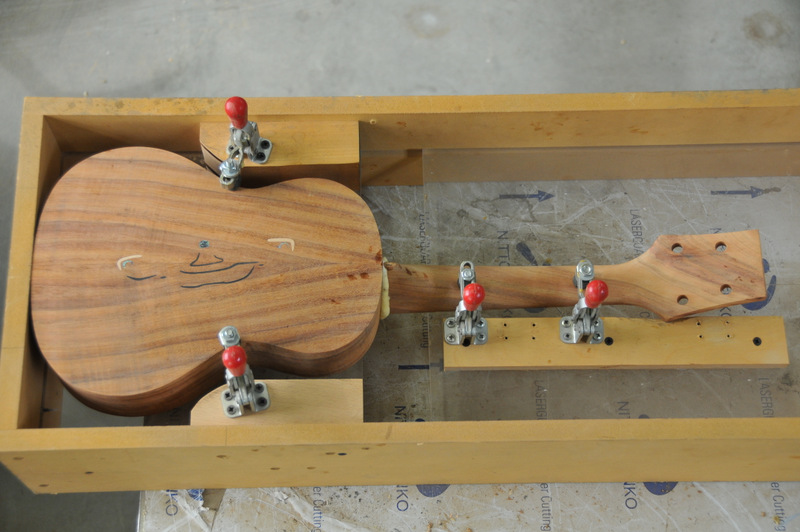

Attaching the neck to the body

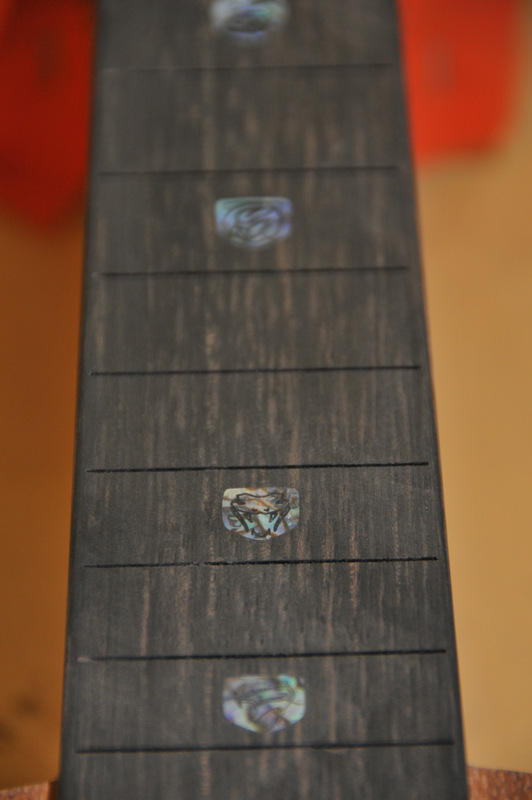

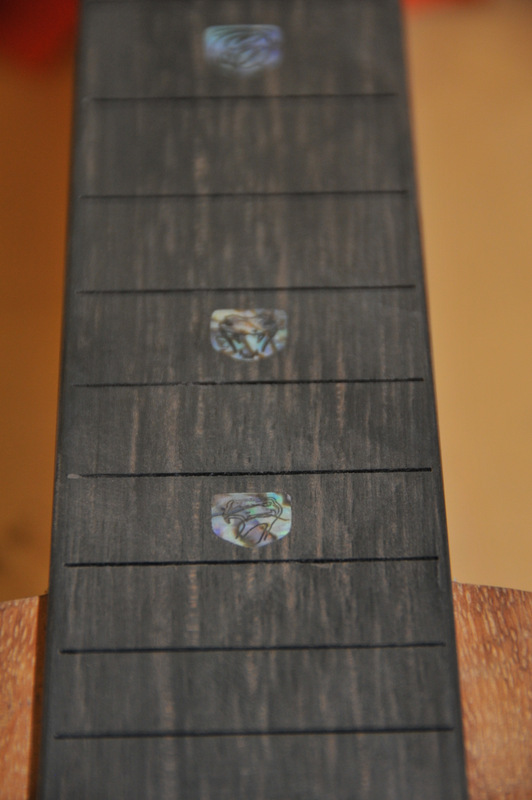

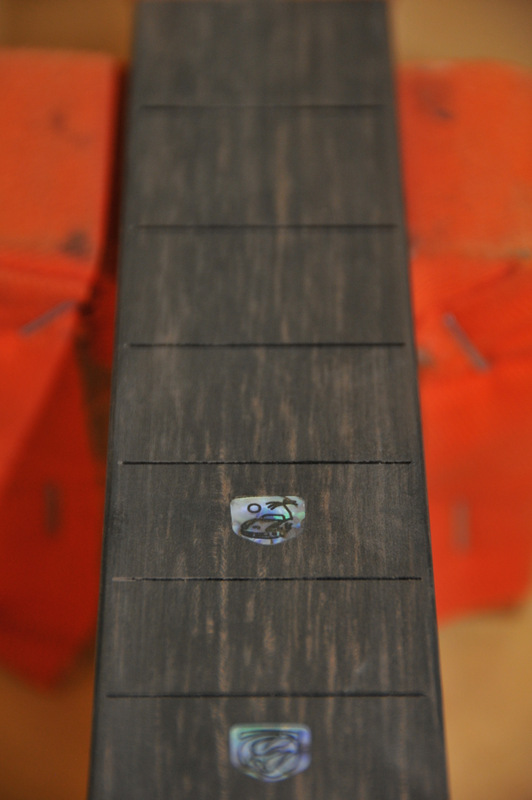

Getting the fretboard ready

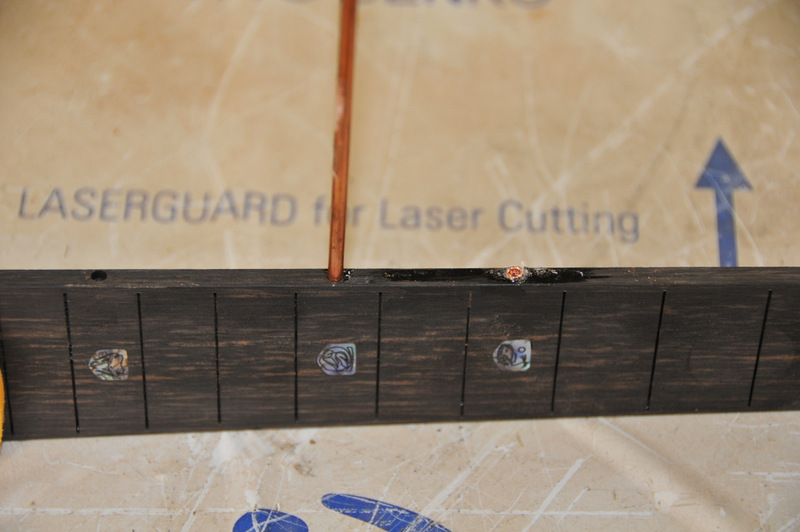

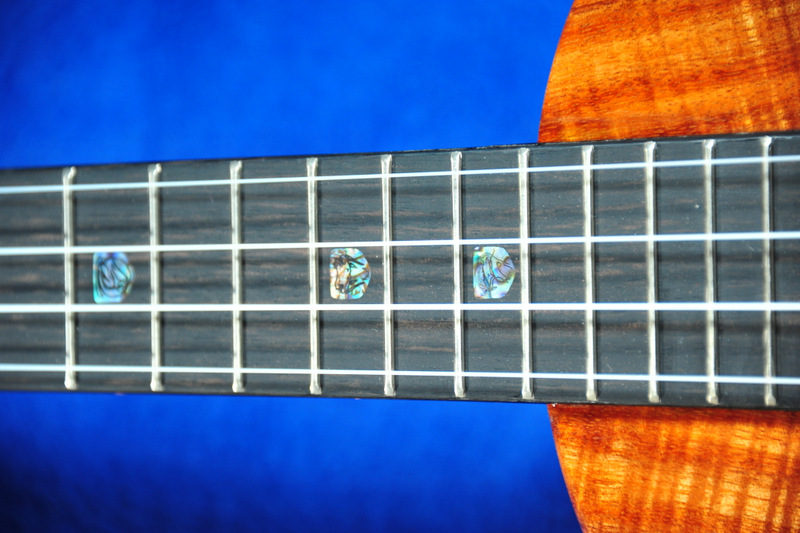

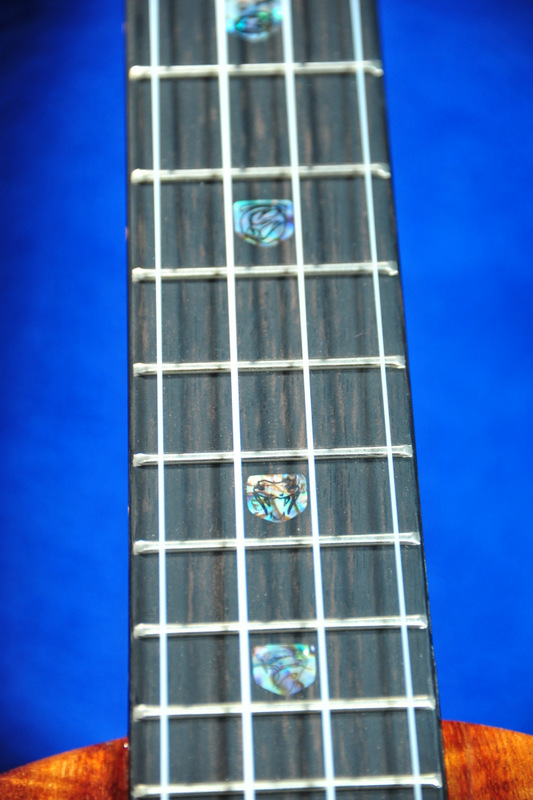

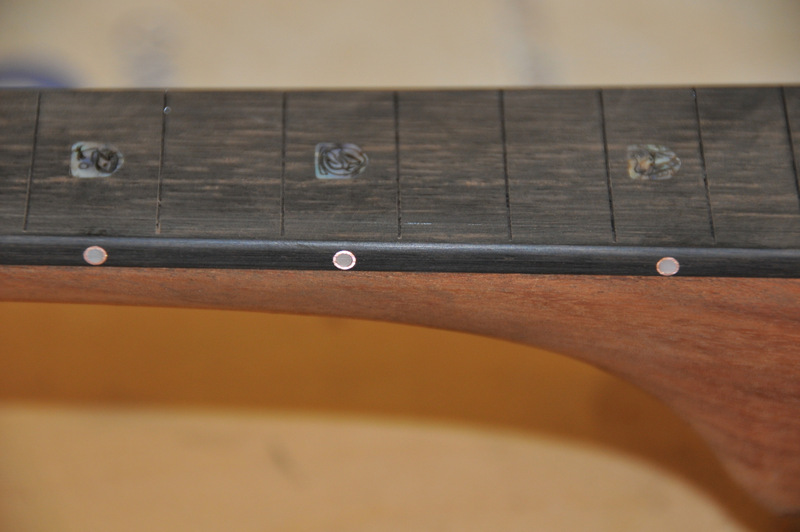

Adding the copper side dots

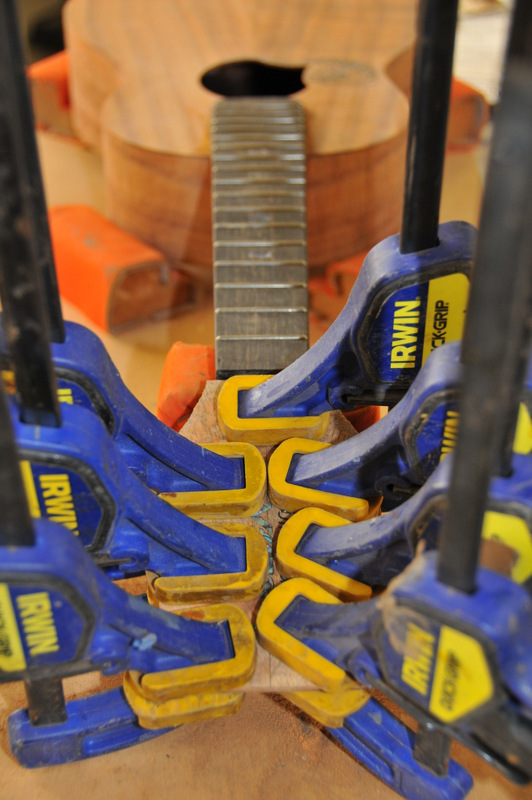

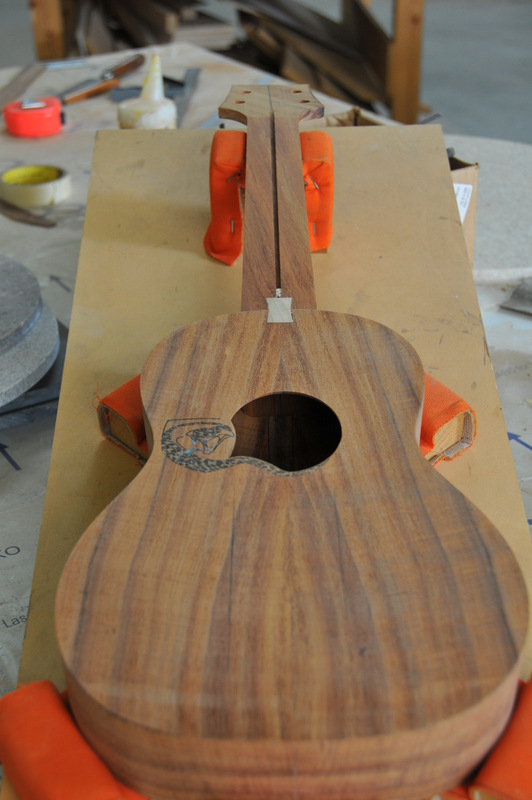

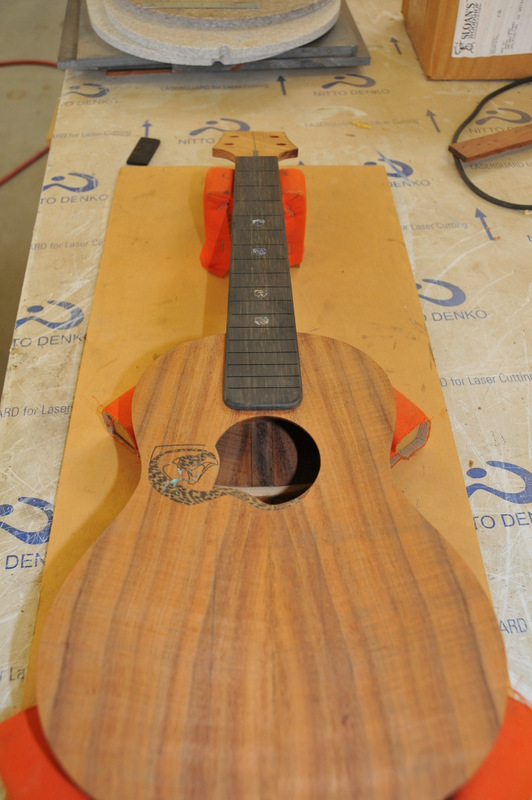

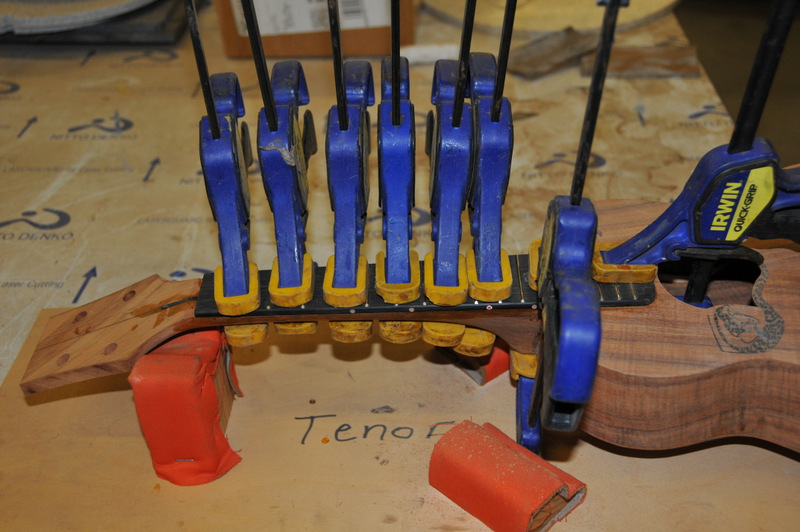

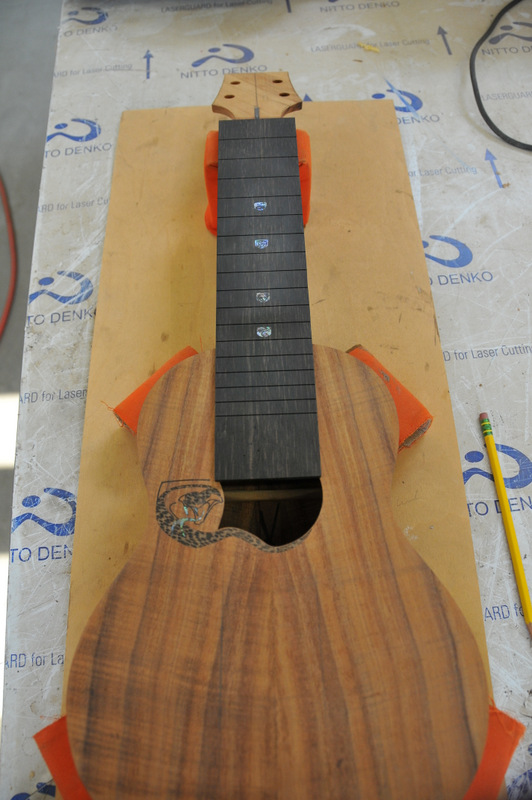

Gluing the fretboard on

Gluing the top plate on

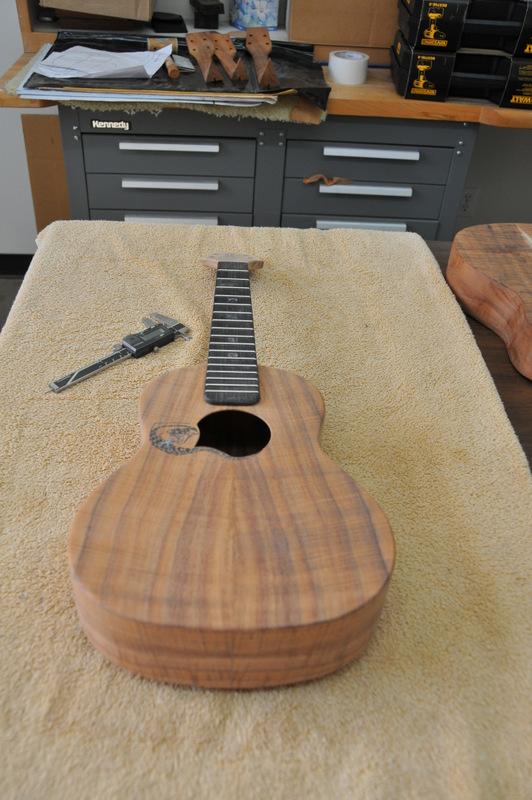

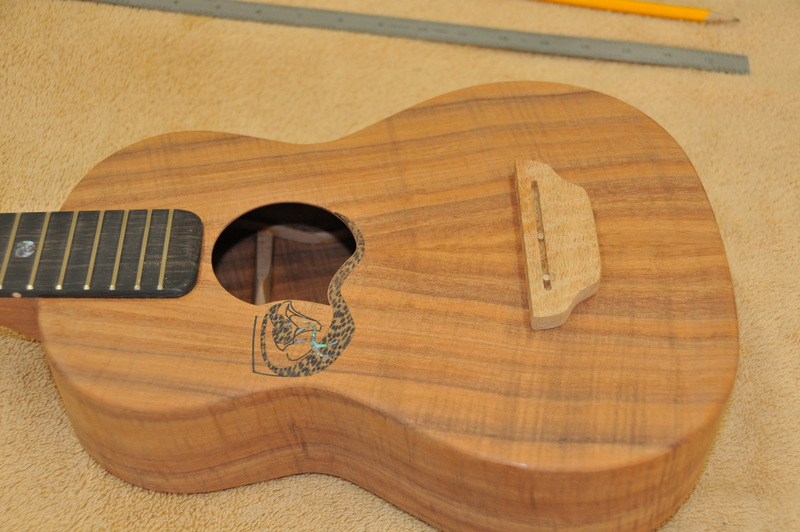

Now 2 days of hand sanding

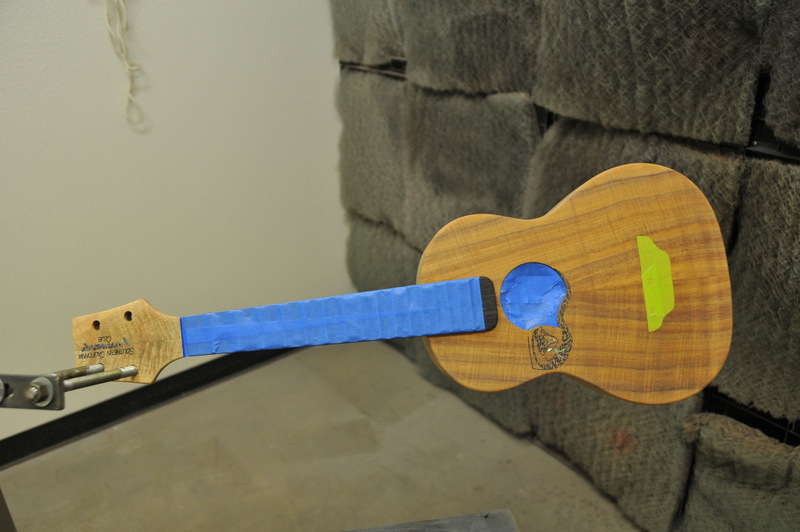

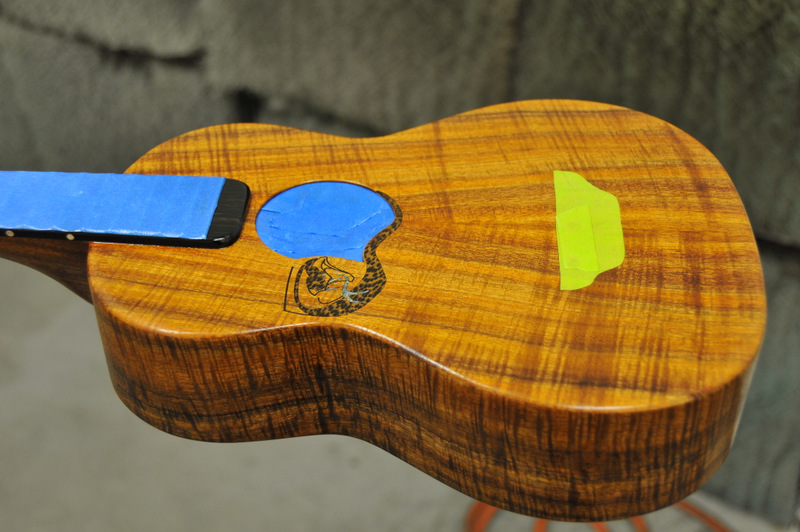

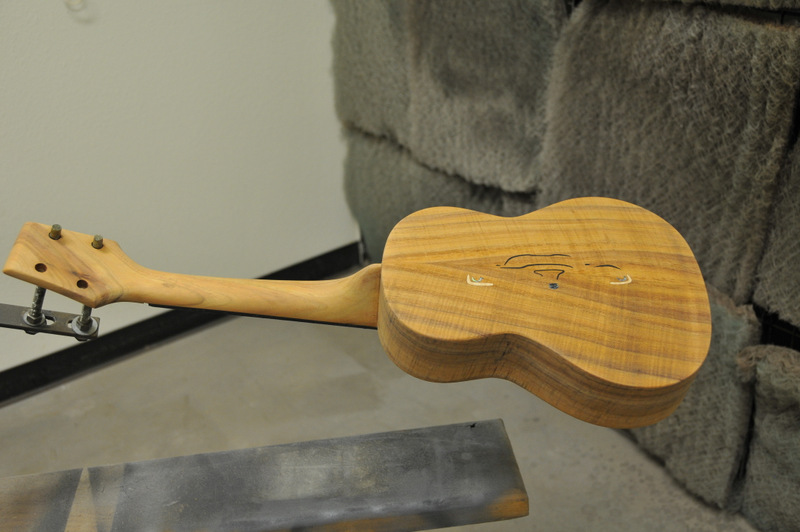

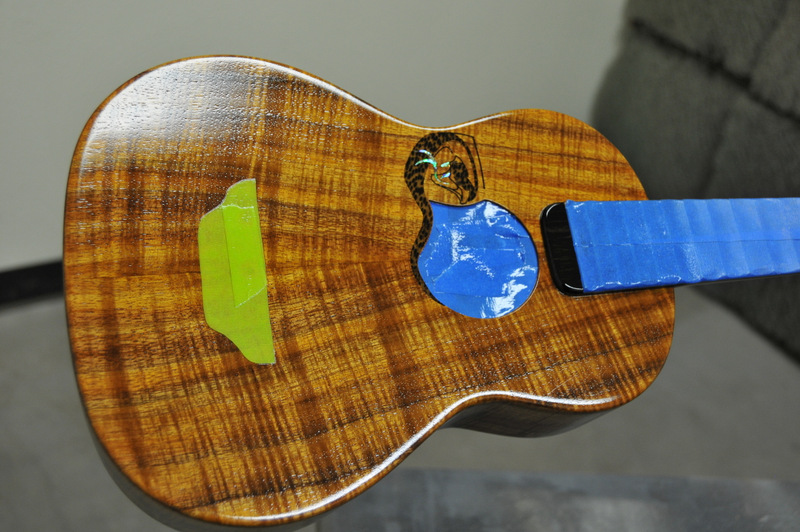

taped off for the lacquer finish

Finally into the spray booth

The 1st of at least 10 coats of lacquer

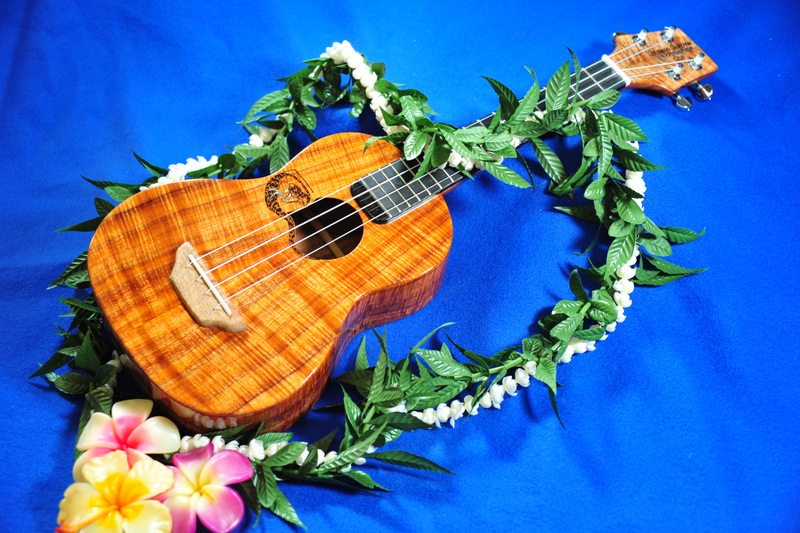

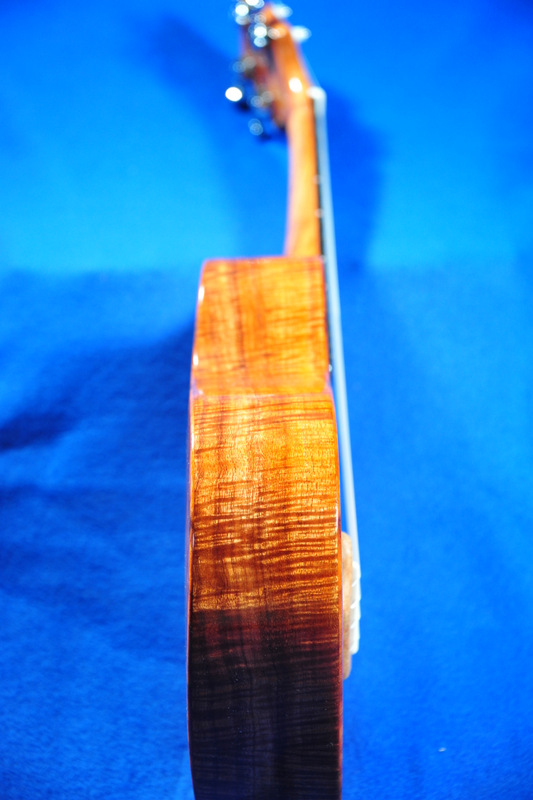

This uke started almost 5 months ago and well over 60 hours of love and labor has been invested

in this very special ukulele.
